Precision die-cut components for electronics manufacturing including gaskets, insulators, EMI shields, thermal interface pads, and mounting spacers for PCB and device assembly.
Our electronic die-cuts serve the full spectrum of electronics manufacturing ? from consumer devices to industrial controls. We work with polyimide, polyester, foam, conductive fabrics, and thermal materials to produce components that insulate, shield, seal, and protect.
Typical specification range ? custom grades available to meet specific application requirements and compliance standards.
| Materials | Polyimide / PET / Foam / Conductive fabric / Thermal materials |
|---|---|
| Thickness | 0.025 mm ? 5.0 mm |
| Tolerances | ?0.10 mm (typical) |
| Adhesive Options | Acrylic PSA / Silicone PSA / Conductive PSA |
| Temperature Range | -40?C to +260?C |
| Dielectric Strength | Up to 10 kV (polyimide) |
| Delivery Form | Die-cut parts / sheets / reel-to-reel |
| Certifications | IATF 16949:2016; RoHS |
Precision die-cutting supports tight-tolerance parts for compact electronic assemblies and densely populated PCBs.
Single components can combine insulation, shielding, adhesion, and thermal management in one die-cut part.

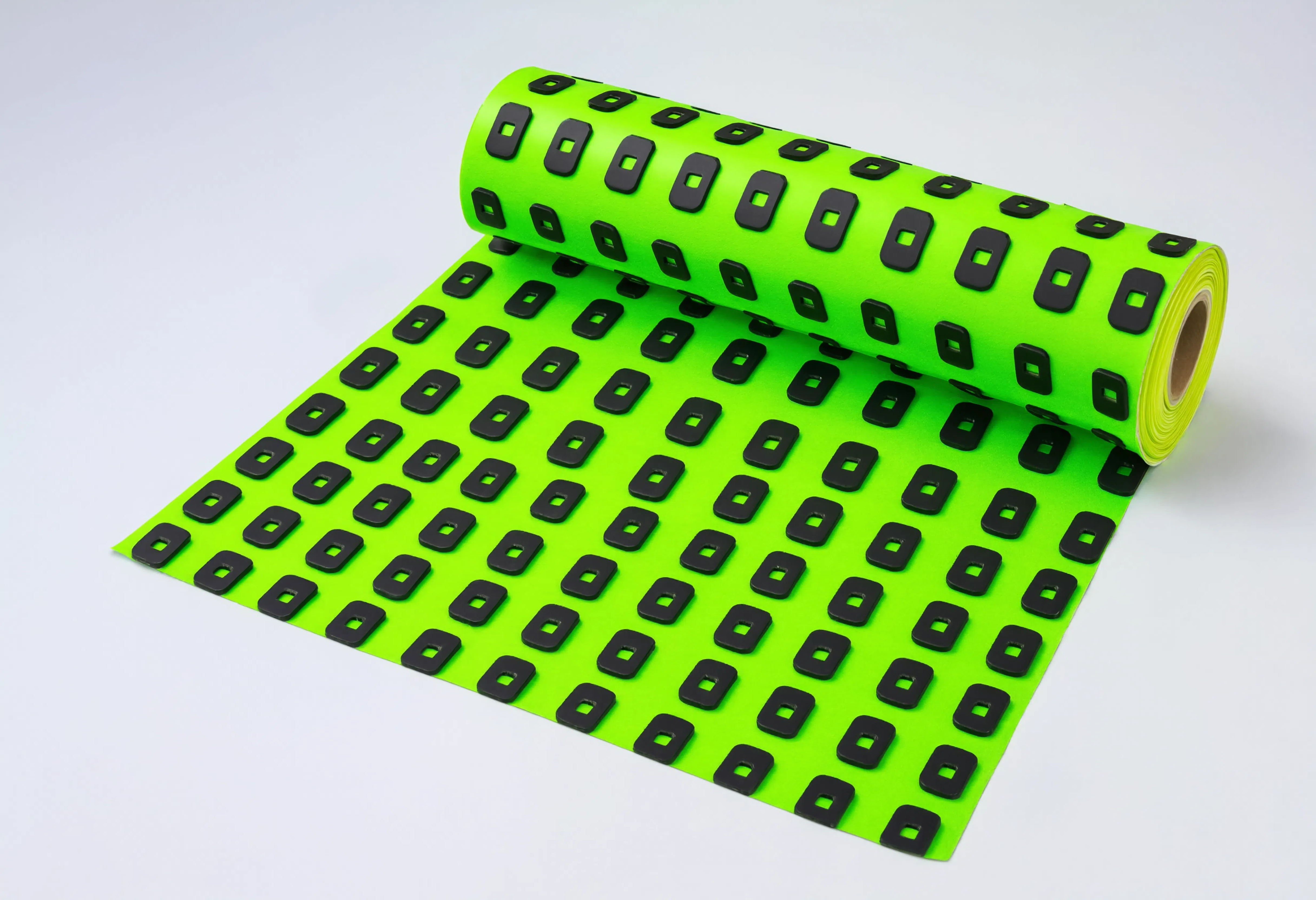

Reel-to-reel delivery enables automated pick-and-place assembly for high-volume production lines.
