Vent Plugs
Precision pressure relief solutions for enclosures that demand controlled venting. Our vent plugs combine engineered membranes with robust housing to equalize internal pressure, block liquid ingress, and maintain IP rating.
Available in explosion proof and ordinary pressure relief valve configurations for automotive, EV, telecom, electronics, and industrial applications.
Pressure Relief Valve Variants

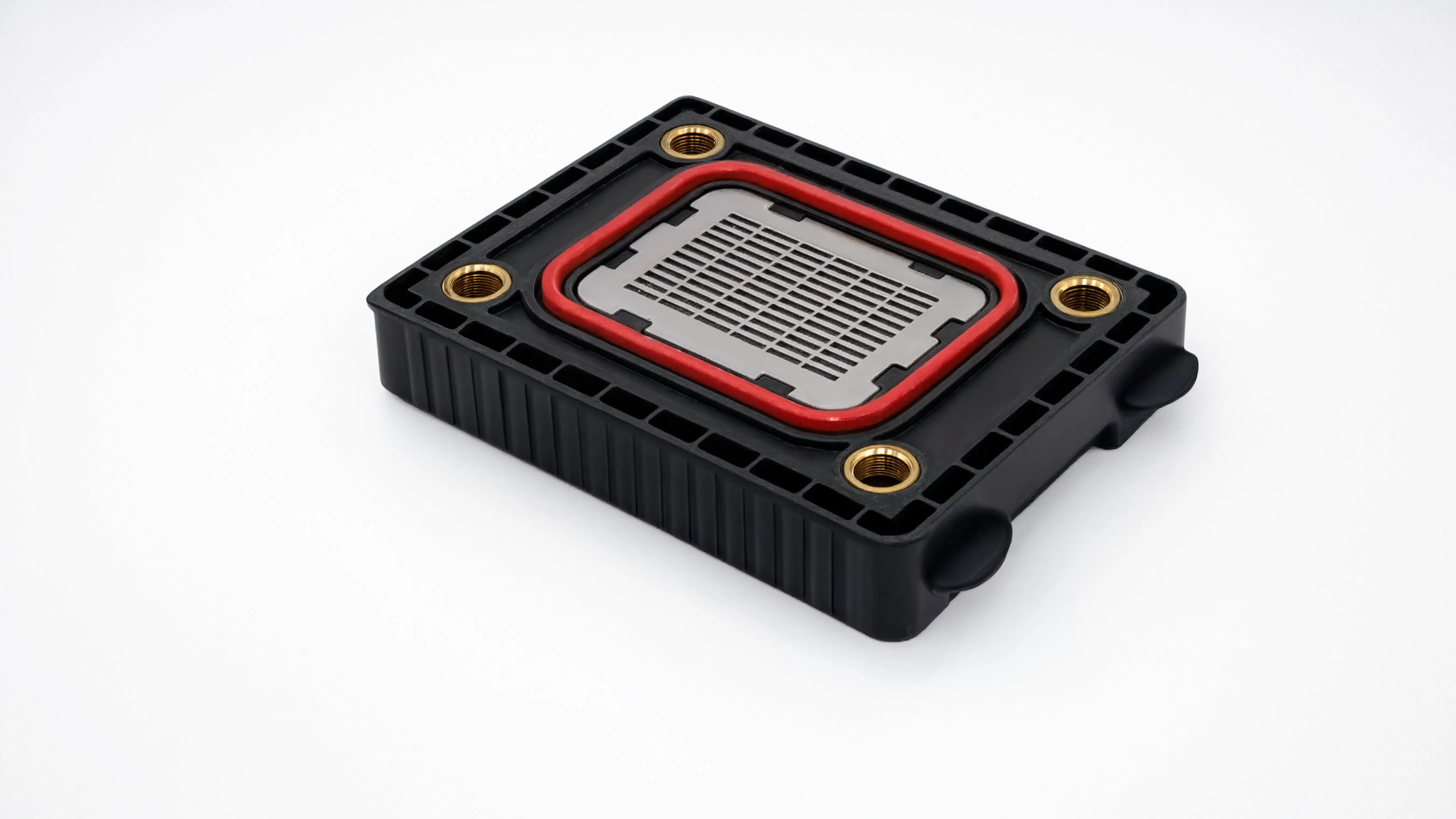

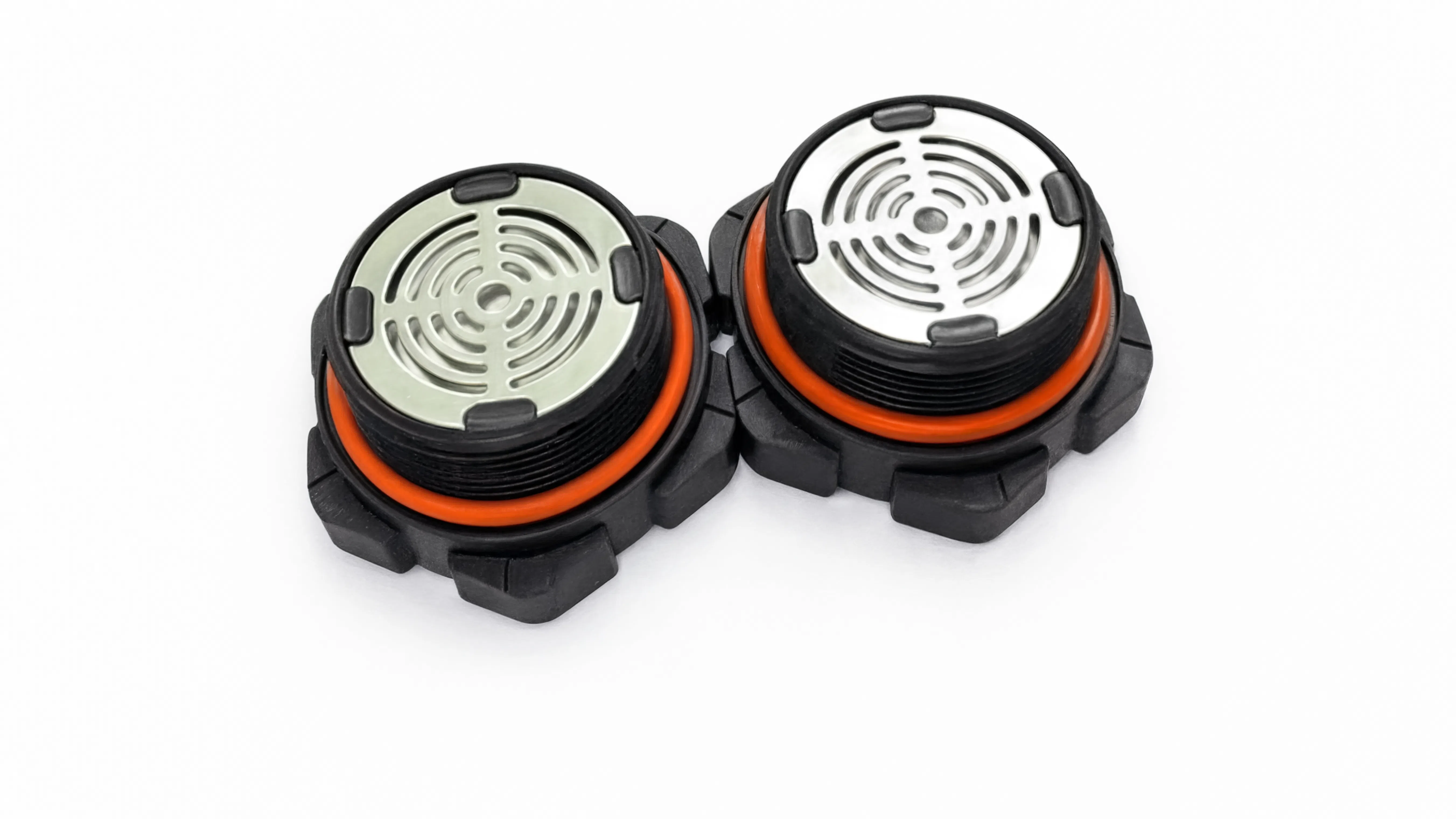

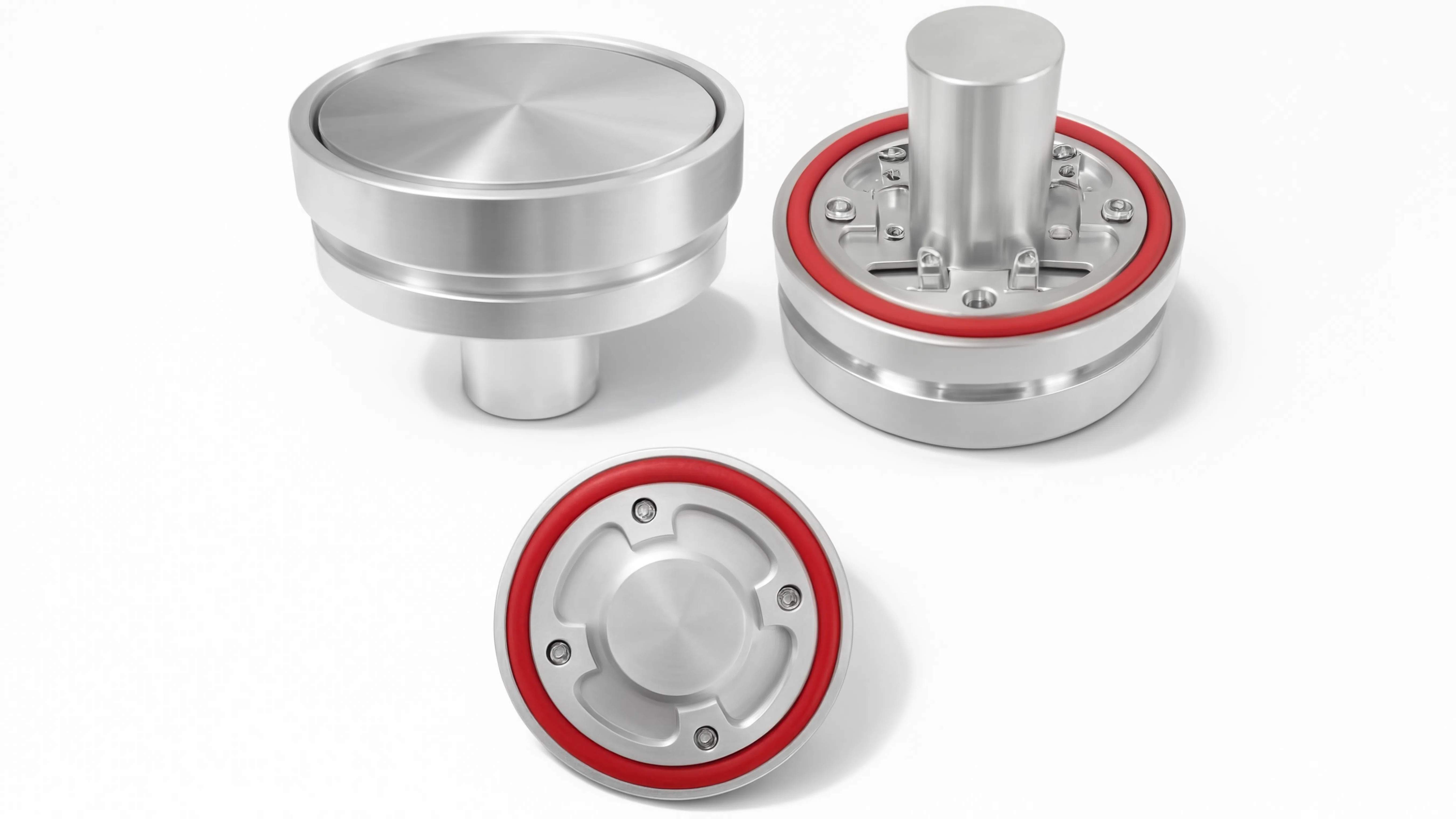

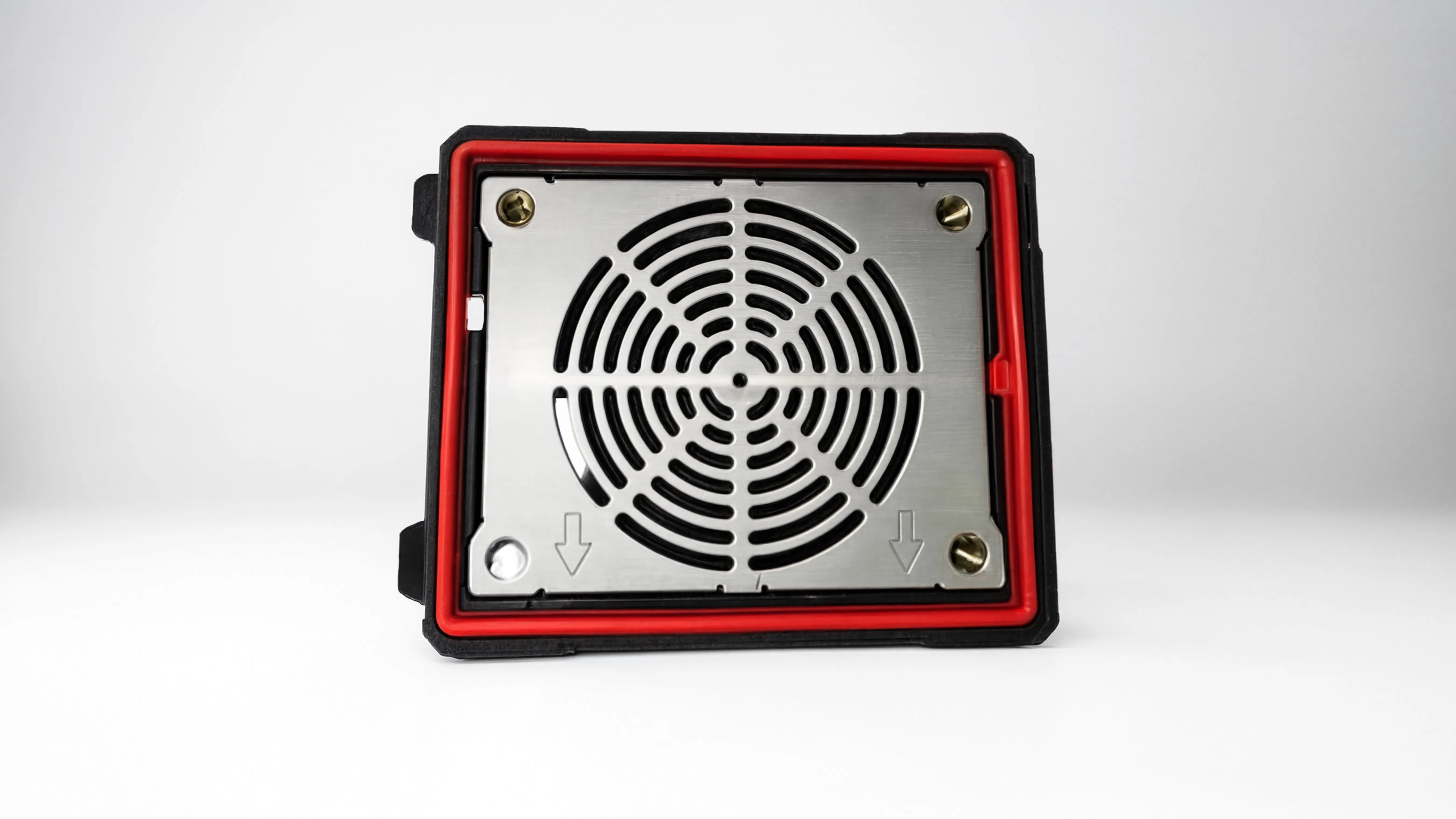

Explosion Proof Pressure Relief Valves

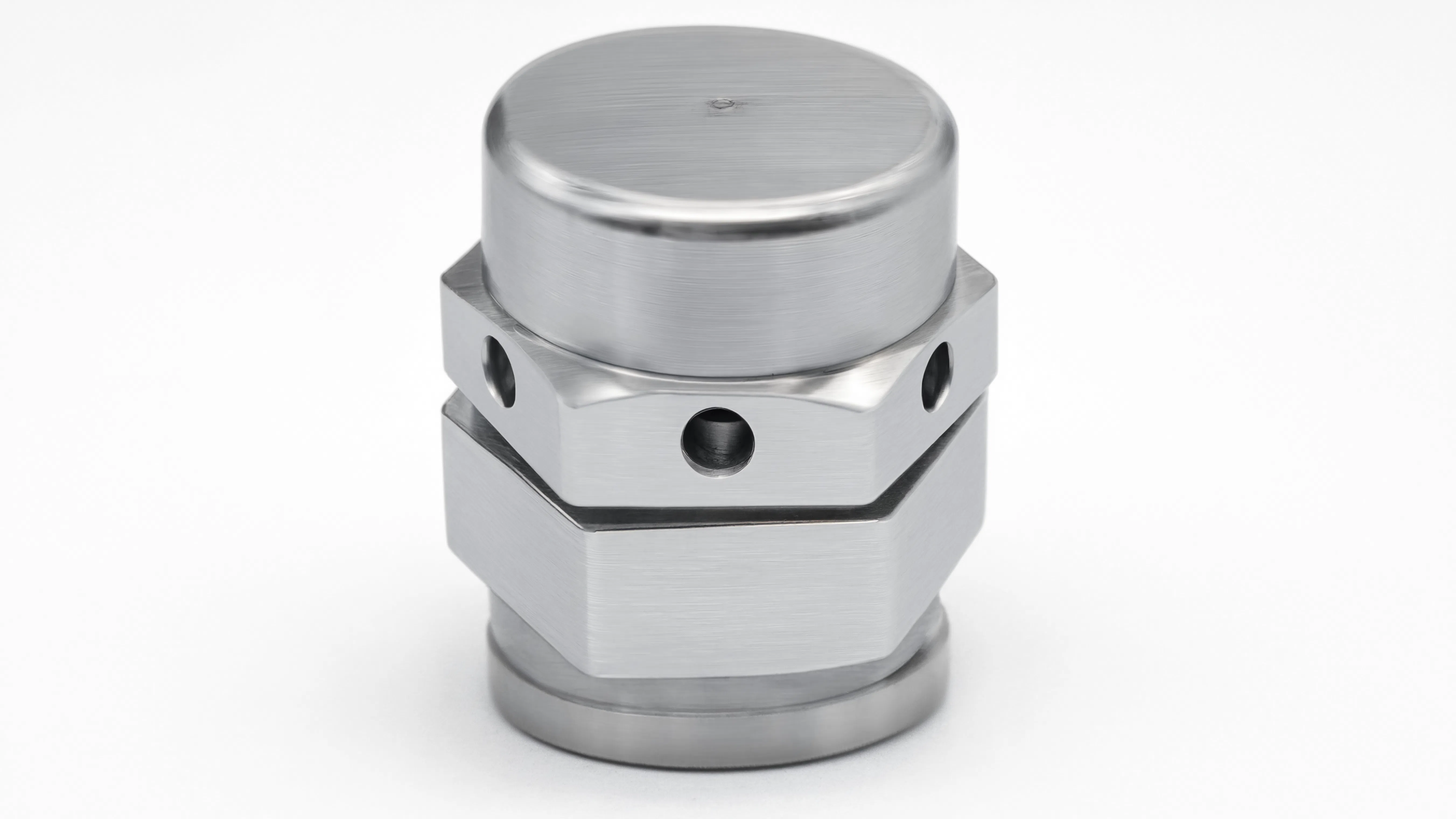

Rugged metal-housing valves with explosion-proof membrane technology. Designed for hazardous environments where flammable gases or dust may be present. Prevents flame propagation while maintaining reliable pressure equalization. Available in multiple thread sizes and aluminium alloy configurations.
Ordinary Pressure Relief Valves

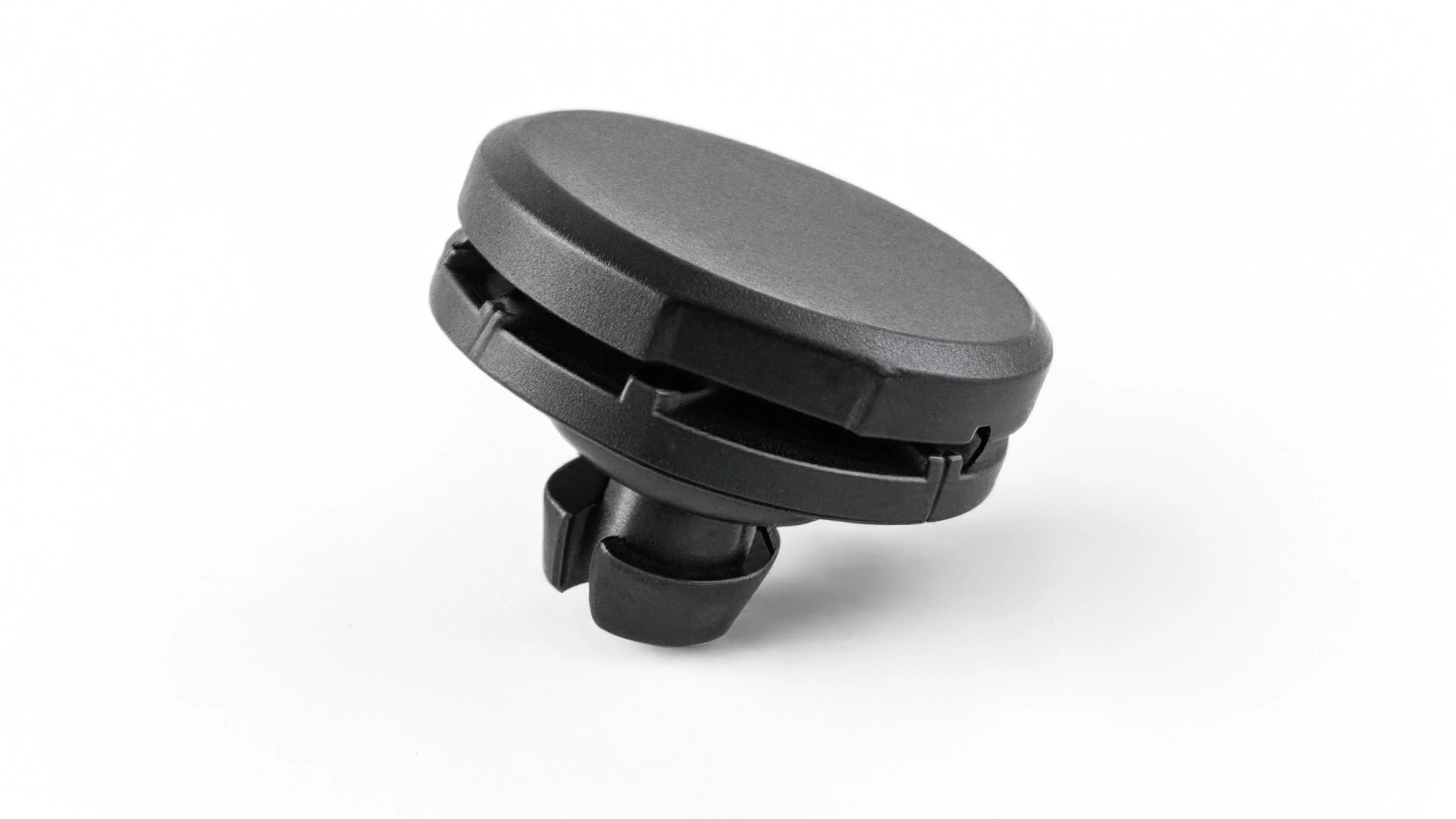

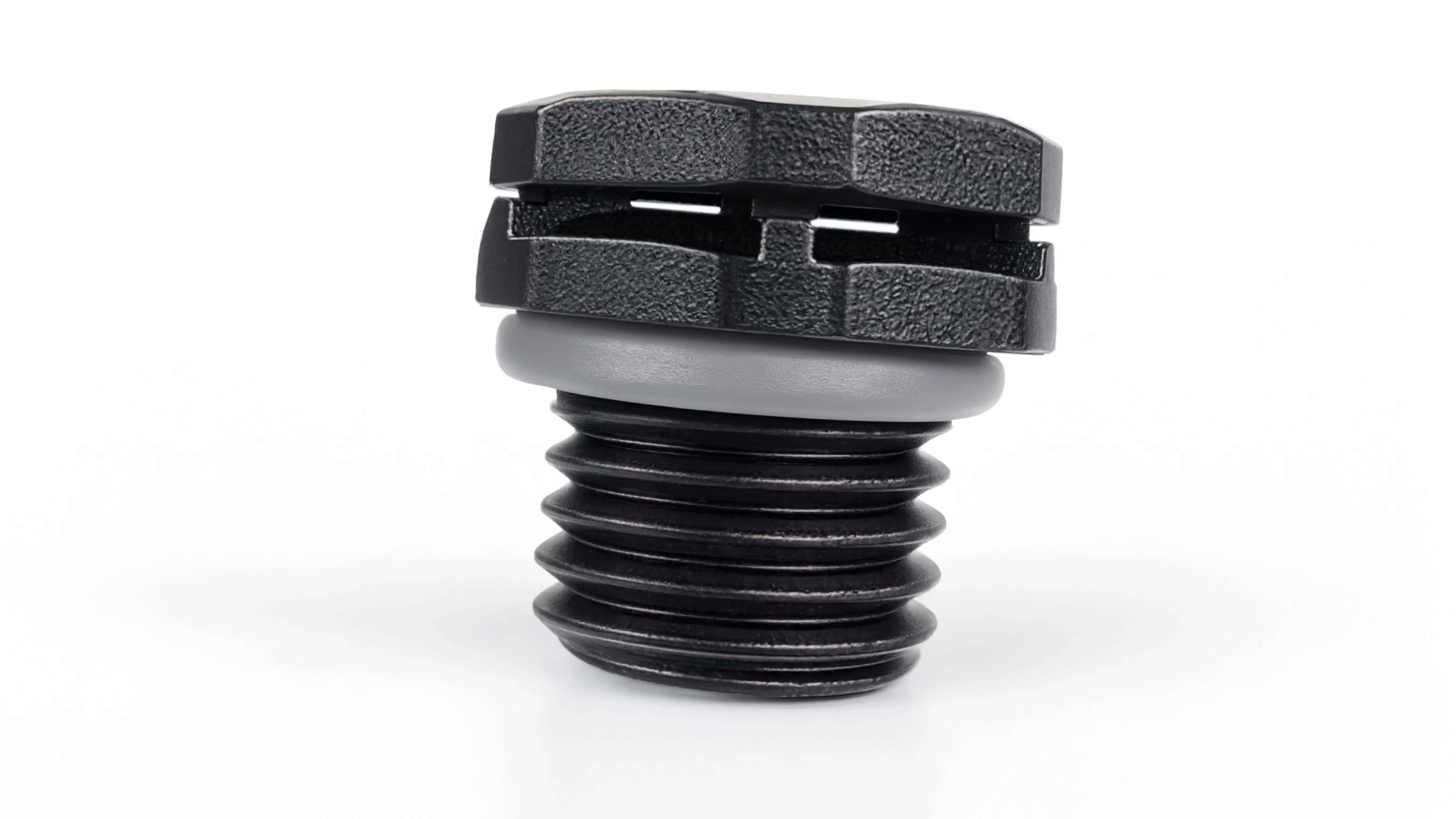

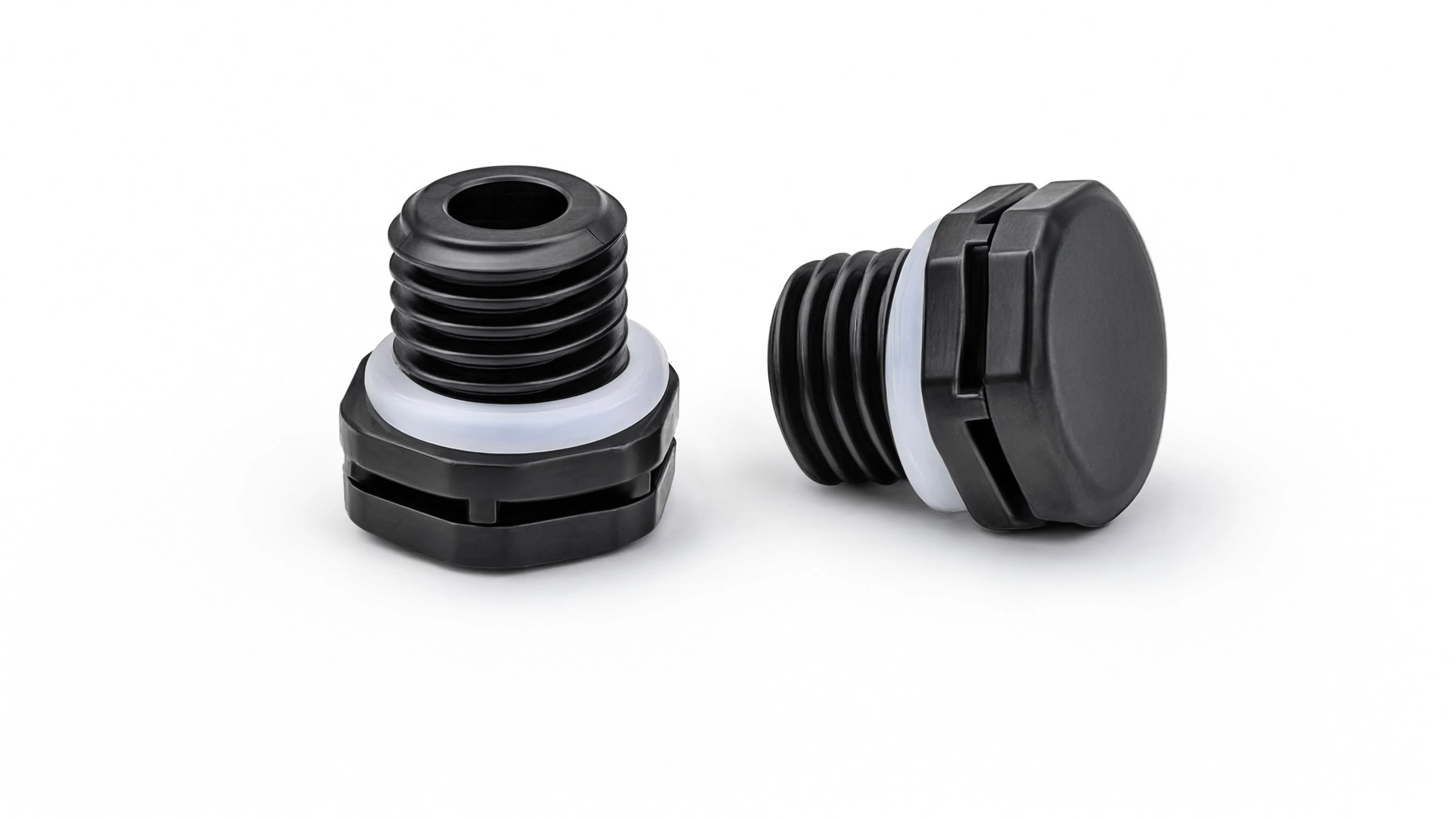

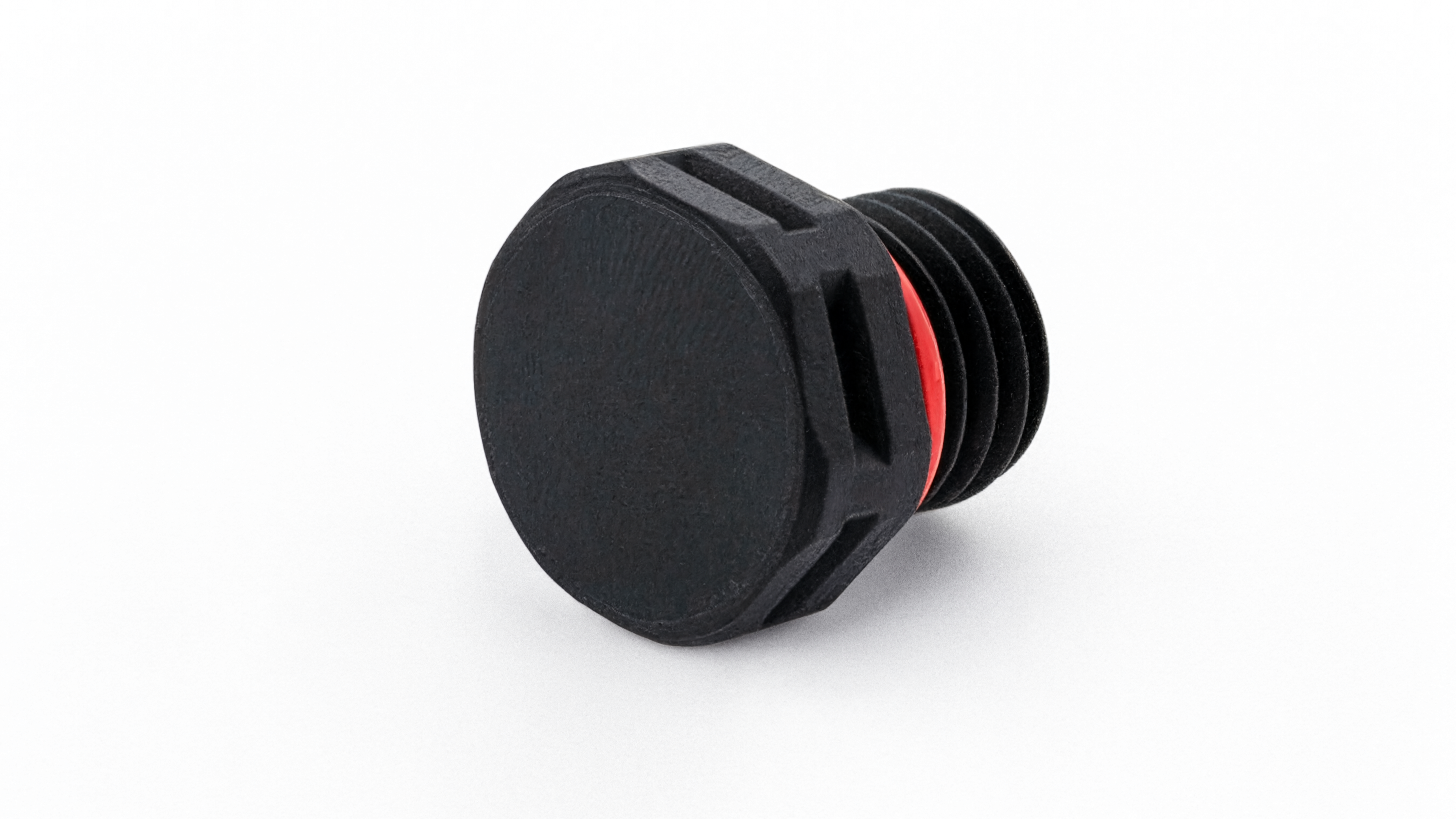

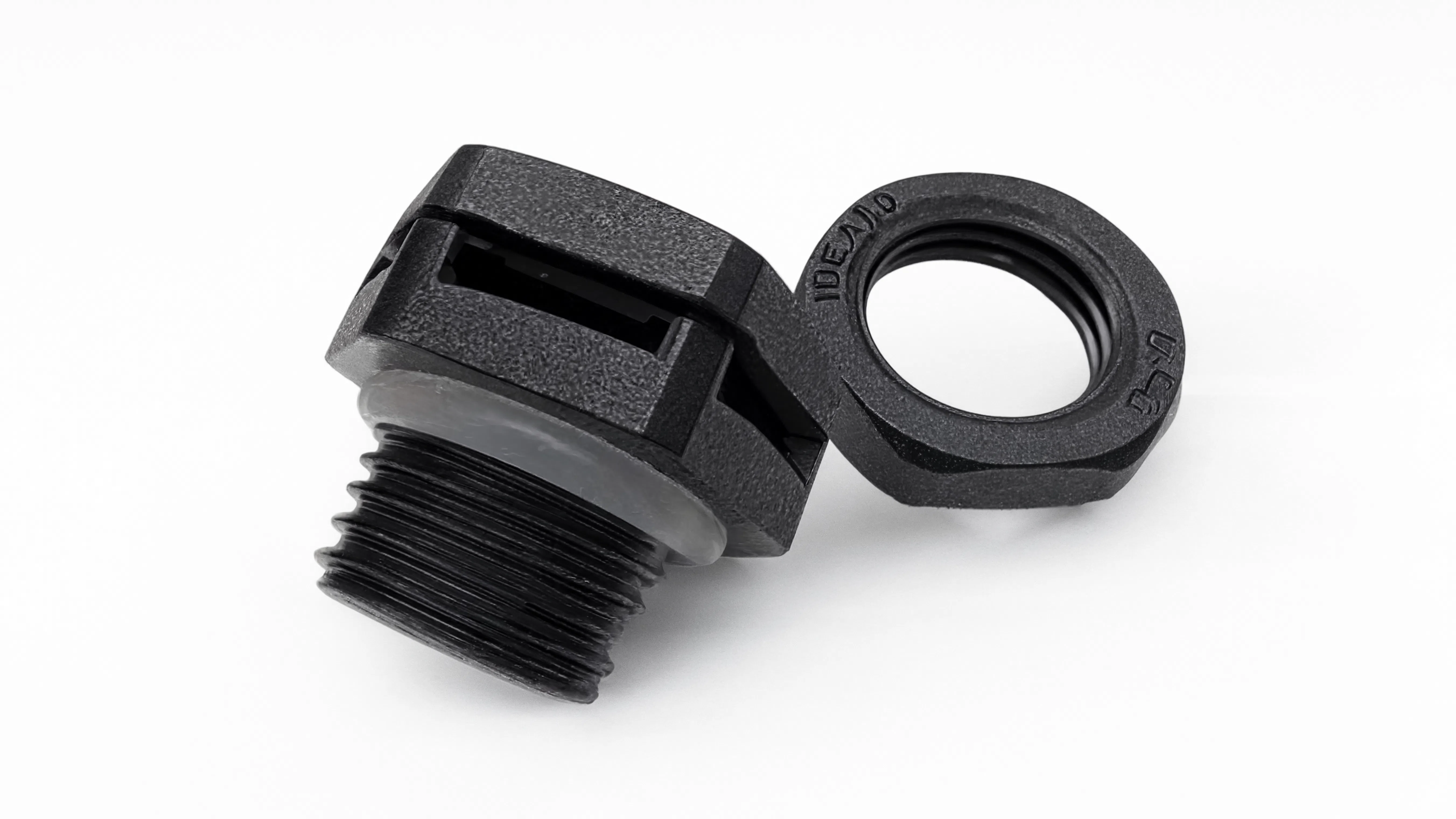

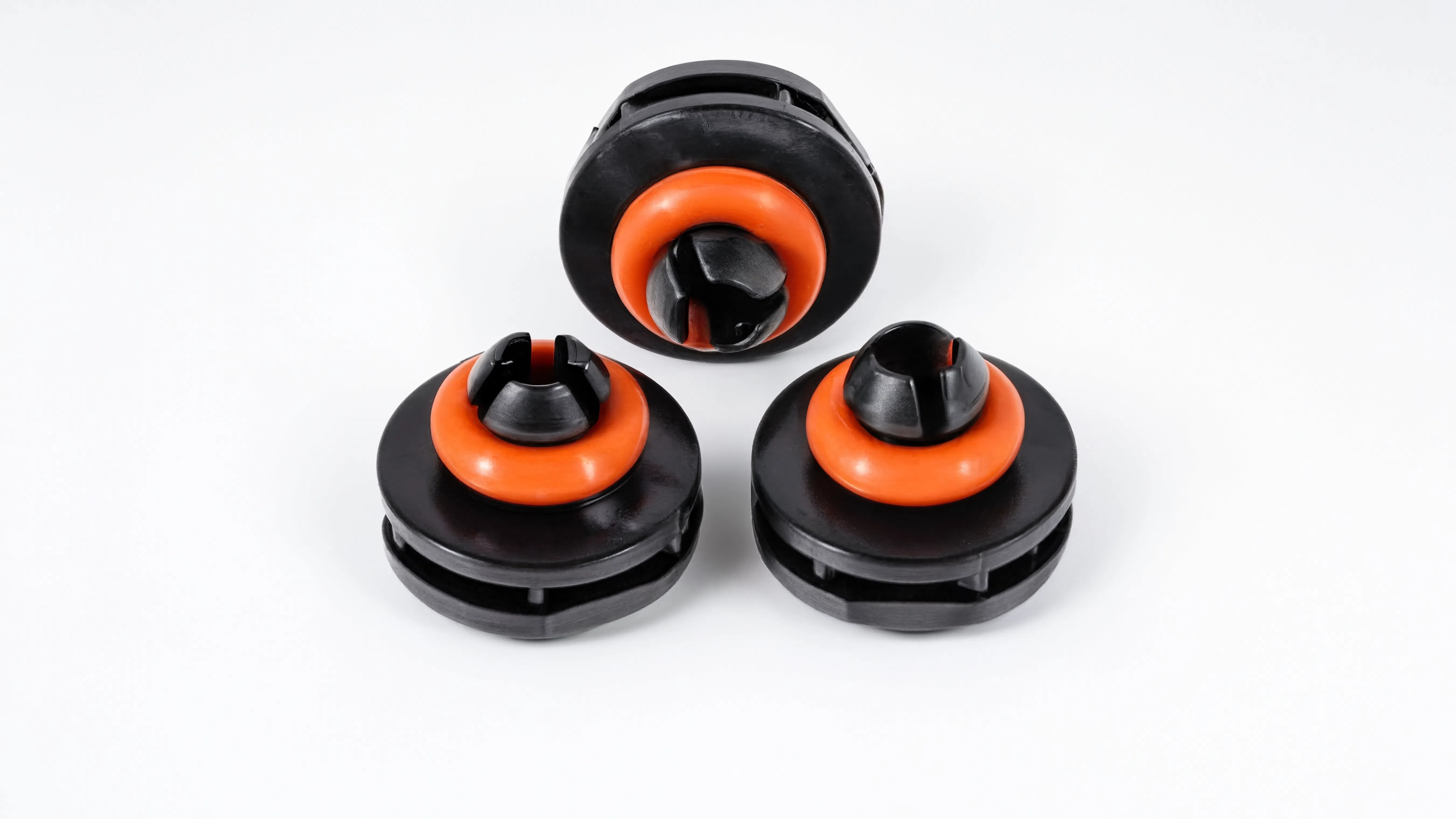

Cost-effective PRV and snap-in vent solutions for general-purpose enclosure protection. Ideal for automotive electronics, LED lighting, telecom cabinets, and consumer appliance applications. Available in threaded PRV models (M8, M12, M16, M20) and push-fit snap-in vent designs for fast tool-free installation.
Technical Specifications
Typical specification range — custom grades available to specific application requirements. Contact our team for material certification data.
| Valve Type | Normally closed / bidirectional |
|---|---|
| Crack Pressure | 1 kPa – 50 kPa (custom) |
| Operating Temperature | -40°C to +125°C |
| Housing Material | Polyamide / PBT / Aluminium |
| Membrane | ePTFE (when venting required) |
| Seal Material | Silicone / FKM / EPDM |
| Mounting | Threaded / snap-fit / O-ring seal |
| IP Rating | Up to IP67 / IP68 |
| Certifications | IATF 16949:2016 (process); RoHS |
Key Properties
Engineered for EV and energy storage battery pack pressure management, preventing enclosure damage during thermal events.
Crack and reseal pressures calibrated to your exact requirements with repeatable performance.
Space-efficient designs that mount directly into housing walls without increasing overall package size.
