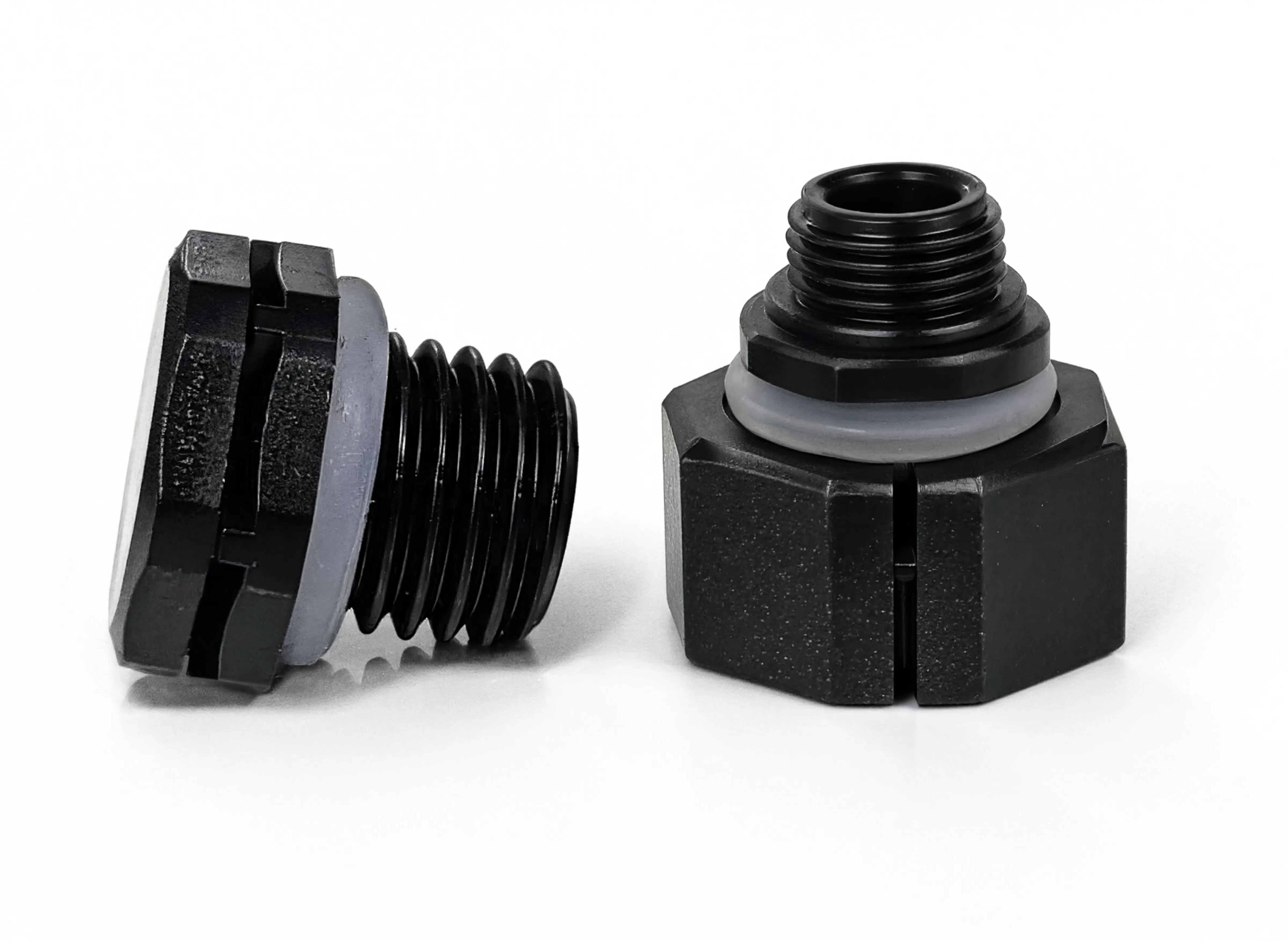

Pressure-relief valves designed to protect sealed automotive and electronic enclosures from dangerous pressure build-up. Certified for hazardous environments.
Advanced safety venting solutions engineered to prevent catastrophic enclosure failure by releasing excess pressure in a controlled manner. Each EP valve model is calibrated to specific crack pressures and available in multiple mounting configurations including threaded, flanged, and snap-fit.
Typical specification range — custom grades available to specific application requirements. Contact our team for material certification data.
| Valve Type | Explosion-proof pressure relief |
|---|---|
| Crack Pressure | 5 kPa – 100 kPa (custom) |
| Flame Path | Ground and certified |
| Housing Material | Stainless steel / Aluminium / PA |
| Operating Temperature | -40°C to +150°C |
| Seal Material | Silicone / FKM |
| Mounting | Threaded / flanged / snap-fit |
| IP Rating | IP67 / IP68 |
| Certifications | IATF 16949:2016 (process); RoHS |
Certified flame path design contains internal explosions while allowing controlled pressure release.
Engineered for EV battery packs requiring certified venting for thermal runaway scenarios.
Suitable for industrial enclosures in explosive atmospheres requiring overpressure protection.
